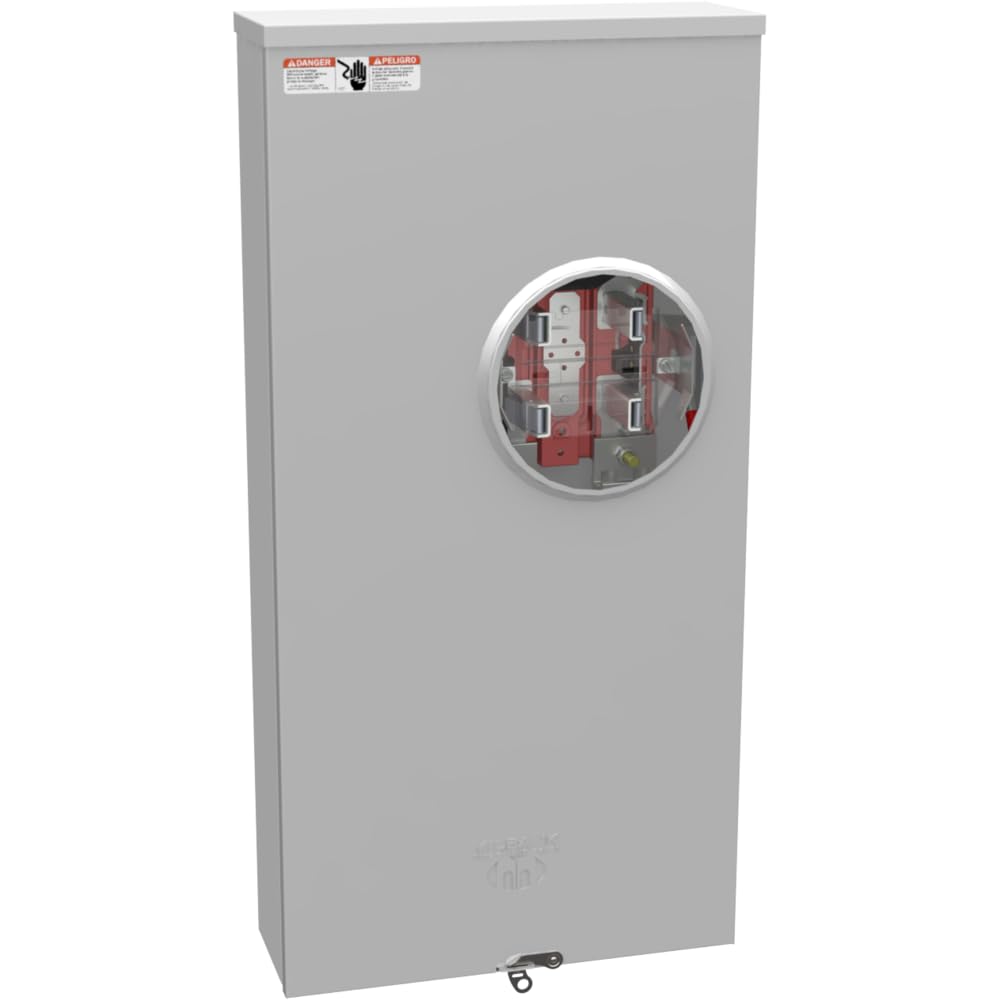

U1797-O-K3L-K2L Meter Socket RINGLESS 320 AMP with Hand Lever 4T 1PH UNDEGROUND New!!!
Product details
| Management number | 221686571 | Release Date | 2026/05/03 | List Price | US$280.00 | Model Number | 221686571 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Amperage Rating 320 Continuous Ampere Phase 1 Phase Frequency Rating 60 Hertz Size 4.844L x 15W x 30H Number of Main Breakers 0 Main Breaker Size No Main Breaker Cable Entry Underground Terminal Single Mechanical Insulation Glass Polyester Mounting Surface Mount Material G90 Galvanized Steel with Powder Coat Finish Number of Jaws 4 Terminal Bypass Provision Lever Bypass Number of Meter Positions 1 Position Equipment Ground 3 Barrel Ground Lug Hub/Closing Plate Plain Top Line Side Wire Range 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil Load Side Wire Range Two 6 AWG - 350 kcmil Number Of Receptacles 0 Height 30 IN Length 4.844 IN Width 15 IN Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
| Model | U1797-0-K3L-K2L |
|---|---|
| Brand Name | Generic |
| Phase Type | Single Phase |
| Part Number | U1797-0-K3L-K2L |
| Manufacturer | MILBANK |
| Material Type | Alloy Steel |
| Item Type Name | 320 AMP METER CAN |
| Maximum Current | 320 Amps |
| Item Dimensions L x W x H | 4.84"L x 15"W |
